PPGI/ PPGL Prepainted Color Coated Galvanized Steel Sheet Coils China Factory ShanDong
Product Description
| Specifications : |
1.Coil ID: 508mm-610mm 2.Coil Weight: according to the customer's request 3.Surface protection: PE, PVDF, SMP, HDP, etc. 4.Surface treatment: chromate, oil/unoil, bright finish, spangle, anti-finger print |
Standard | GB/T-12754: 2006, JIS3302, EN 10142, ASTM A653, JIS G3302, SGCC/SGCH, GB/T2518, European Standard, ASTM A792, JIS G3321, JIS G3317 |
Base Plate | Cold rolled steel sheet, hot dipped zinc coated steel sheet, hot dipped A-Z coated steel sheet |
Equipment | Double coating double baking; three coating three painting |
Capacity | 500,000Mt/year |
Size | Thickness 0.12mm-4mm, width 750mm-1500mm |
Zinc Coating | 30g-180g |
Paint THickness | Top:20+-5um, back:5-7um |
Coil Weight | 2.5Mt-8Mt |
Coil ID | φ508mm-φ610mm |
Base Sheet | Cold rolled steel sheet, hot dipped zinc coated steel sheet (small, regular or zero spangle), hot dipped A-Z coated steel sheet |
Surface Paint | EP, PE, HDP, SMP, PVDF |
Color Series | RAL color number series |
Surface Type | Printed, embossed, corrugated |

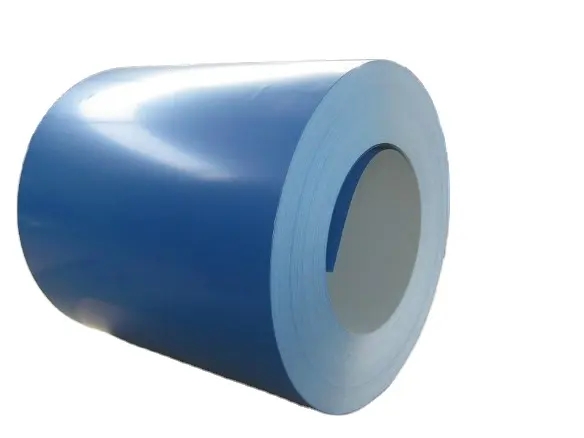

Pictures of goods
Our factory
Packaging & Shipping
Application
| Applications of Prepainted Steel Coil : |
1.Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc. 2.Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc. 3.Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc. 4.Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc. |
| Process of Prepainted Steel Coil : |
| Pay off reel-double cut shear-jonter-pre cleaning section-dryer-entry accumulation-cleaning section-chemical coater-chemical oven-primer coater-prime oven-prime coater cooling unit-dryer-finish coater-finish oven-finish coater cooling unit-dryer-tension leveler-exit accumulator-exit shear-tension reel. |
